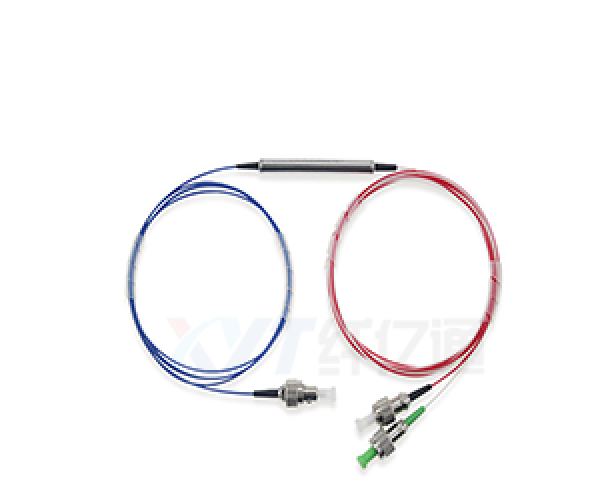

XYT-TECH Sharetop Technologu Co.,ltd High Power Optical Circulator
- Product Features -
High isolation & High Reture Loss
Low insertion loss & PDL Optical Path Epoxy Free
- Product Specification -
EDFA,DWDM and OTDR DWDM and OADM networks Bi-directional transmission system
High Power Optical Circulator Specifications
Parameter | 3 Port | ||||
Operating wavelength (nm) | 1550+/-30 | C+L Band(1570+/-50) | |||
Isolation ( all λ,23℃ all SOP) (dB) | ≥40 | ≥40 | |||
Isolation (Over all λ, T, SOP) (dB) | ≥35 | ≥30 | |||
Insertion Loss (λc,23℃ all SOP) (dB) | Grade P | ≤1.0 | ≤1.0 | ||
Insertion Loss (λc,0~70℃ all SOP) (dB) | Grade P | ≤1.2 | ≤1.2 | ||
PDL (dB) | ≤0.15 | ≤0.20 | |||
Return loss (dB) | ≥50 | ||||
PMD (ps) | ≤0.1 | ||||
Directivity | ≥50 | ||||
Power handling (W) | 1,2,3,5,or special | ||||
Fiber Type | SMF-28e | ||||
Operating temperature (℃) | 0 ~ +70 | ||||
Storage temperature (℃) | -40 ~ +85 | ||||
Package Dimensions (mm) | For bare fiber or 900um loose tube | φ5.5×L50(P2) | |||
For 3mm &2mm cable | L90XW20XH9.5(P9) | ||||
* Insertion loss is not include connector loss
Ordering Information
wavelength | Type | Grade | Power | Package type | Pigtail Type | Length | Connector |
1550=1550nm 1570=1570nm | 3=3 ports | P=P Grade | 1=1w 2=2w 3=3w 5=5w A=10W | 2=P2(for 3 port) 9=P9(for 3mm cable) | 1=250um bare fiber 2=900um loose tube 3=2.0mm loose tube 4=3.0mm loose tube | H=0.5m 1=1m 5=1.5m 2=2m | O=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC |
|
