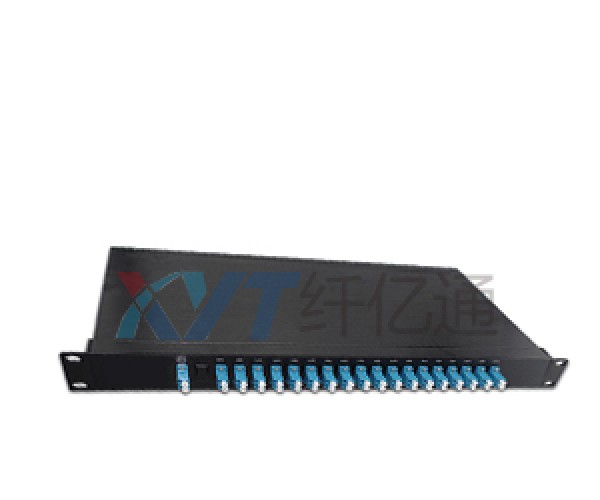

XYT-CWDM-MUX/DEMUX-1U
【NO.】CWDM-TFF1U-26Nv05
8CH CWDM 1Urack-mounted（1270~1610nm）
Product features
l Low insertion loss l Center wavelength: 1270~1610nm
l High stability and high reliability l SMF-28e fiber
l Compact structure l Optional rack and joint types
l Center wavelength selectable, load l Power selectable
l Multiple customizable features
Product Description
A wavelength division multiplexer is a device that can couple two or more different wavelength optical models into a single optical fiber for transmission. Conversely, it can separate and demultidense two or more optical signals of different wavelengths within a single optical fiber. As shown in the diagram, two different beams of light are input from the common terminal. The WDM device allows one beam of a specific wavelength to pass through and output at the transmitted end, while the remaining wavelength is coupled back to the reflecting end for output—this is the process of wavelength splitting. Similarly, the optical path of WDM devices is reversible.
The coarse wavelength division multiplexer CWDM module uses TFF (Thin Film Filter) technology, complying with the ITU-T G.694.2 standard, with one channel every 20 nm in the 1270-1610 nm range. It can carry 2-18 CWDM wavelengths through a single fiber fiber, with each wavelength not affecting the other, so the signal does not interfere with the other. Each channel is usually transparent about data speed and type, so any combination of transmission service types can be transmitted simultaneously via a single fiber or a pair of fibers
Insertion loss calculation: the ratio of optical power to input and output ports
* Specification without connector, test data indicates 25°C.
* For devices with connectors, insertion loss is 0.3dB higher and return loss is 5dB lower.
* For different power parameters, products use different package sizes.
Package structure diagram:（mm）
Spectrogram:
Item sequence | Channel number | Center Wavelength (nm) | Color |
1 | 27 | 1270 | Light purple |
2 | 29 | 1290 | Deep sky blue |
3 | 31 | 1310 | Yellow-green |
4 | 33 | 1330 | Ochre is yellow |
5 | 35 | 1350 | Pink |
6 | 37 | 1370 | Light brown |
7 | 39 | 1390 | White |
8 | 41 | 1410 | Silver |
9 | 43 | 1430 | Black |
10 | 45 | 1450 | Yellow-orange |
11 | 47 | 1470 | Gray |
12 | 49 | 1490 | Purple |
13 | 51 | 1510 | Blue |
14 | 53 | 1530 | Green |
15 | 55 | 1550 | Yellow |
16 | 57 | 1570 | Orange |
17 | 59 | 1590 | Red |
18 | 61 | 1610 | Brown |
Ordering Information: |
Model | Narration |
XYT- CWDM-1U-M/D-8CH(1270~1410)-FU | Coarse wavelength divider multiplexer, 1U rack-mounted, combined + decoupled, 8-channel (1270~1410nm) connector FC/UPC. |
For special specification and parameter requirements, please contact engineers for customization |
Ordering Information: |
CWDM =CWDM | XYT-CWDM-A-B-C-D-E |
A = structure | 1U=19 inch 1U rack mounted | …… | SS = customizable |
B = module type | MUX=Multiplexer | DEMUX=Demultiplexer | M/D= MUX + DEMUX | SS = customizable |
C = number of channels and wavelength | 4CH=4CH(1270~1310) | 8CH=8CH(1270~1410) | …… | SS = customizable |
D = Special channel | MON = Monitoring End | UPG = Expansion Terminal | S = Optional |
E = type of joint | LU=LC/UPC | FA=FC/APC | FU=FC/UPC | S = Optional |
Product testing
The optical passive device products delivered by FiberHome undergo rigorous testing, including spectral testing, insertion loss, extinction ratio, tensile testing, isolation testing, etc. Obtained quality certifications such as ISO 9000/ROHS/CE/FC.
